TP316L 316 Stainless Steel Pipe

Brand Name : DELTA

Model Number : 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc

Certification : ISO

Place of Origin : China

MOQ : 500 kgs

Price : 4000-5000 USD/Ton

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10 Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : standard packing for export

Products : stainless steel pipe tube

Grade : 304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc

Standard : ASTM GB EN

Length : 6m or custom cutting any length as request

Diameter : DN10 - DN400

Wall thickness : SCH10 - XXS or unstandard size

Type : seamless pipe

Service : cutting, polishing

application : Heat exchanger

Packing : wooden box or PP bag

Contact Now

ASTM Standard Stainless Steel Tube Grade TP316L 316 Stainless Steel Pipe for Industrial

Stainless Steel 316L Seamless Pipe, Stainless Steel Type 316L Tube, 316L SS Seamless Tubing, Schedule 40 316L Stainless Steel Pipe are being used in different industries such as cement & construction industries, sugar mills, pumps & petrochemicals, and others. SA312 TP 316L SS Tubing, Stainless Steel 316L Square Pipe, Stainless Steel 316L Oval Pipe, Stainless Steel 316L Hollow Pipe, Stainless Steel 316L Exhaust Pipe, and Stainless Steel 316L Rectangular Pipe, Stainless Steel 316L Round Pipe are available as seamless, for pressure applications, and welded, for structural applications.

ASTM A312 TP316L Material Properties, TP316L SS Pipes & Tubes mechanical properties & chemical composition

Stainless Steel 316L Square Tube Chemical Composition
Grade C Mn Si P S Cr Mo Ni N
316L min. 16.0 2.0-3.0 10.0
max. 0.035 2.0 0.75 0.045 0.030 18.0 14.0
316L Stainless Steel Exhaust Tube Mechanical Properties
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
316L 485 170 40 95 217
Stainless Steel 316L Tube Physical Properties
Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
316L 8000 193 15.9 16.2 17.5 16.3 21.5 500 740
Equivalent Grades for 316L Stainless Steel Tubes
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3

Stainless Steel 316L Seamless Tubes Surface Finish

Surface Finish Internal Surface(ID) Exterbal Surface(OD)
Roughness Average(RA) Roughness Average(RA)
μ inch μm μ inch μm
AP Annealed & Pickled Not defined Not defined 40 or Not defined 1.0 or Not defined
BA Beight Annealed 40,32,25,20 1.0,0.8,0.6,0.5 32 0.8
MP Mechanical Polish 40,32,25,20 1.0,0.8,0.6,0.5 32 0.8
EP Electro Polish 15,10,7,5 0.38,0.25,0.20;0.13 32 0.8

ASTM A312 TP316L Stainless Steel Tube Sizes

Wall Sizes ( O.D.)
.010 1/16" , 1/8" , 3/16"
.020 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012 1/8"
.016 1/8" , 3/16"
.028 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134 1"
.250 3"
.375 3 1/2"

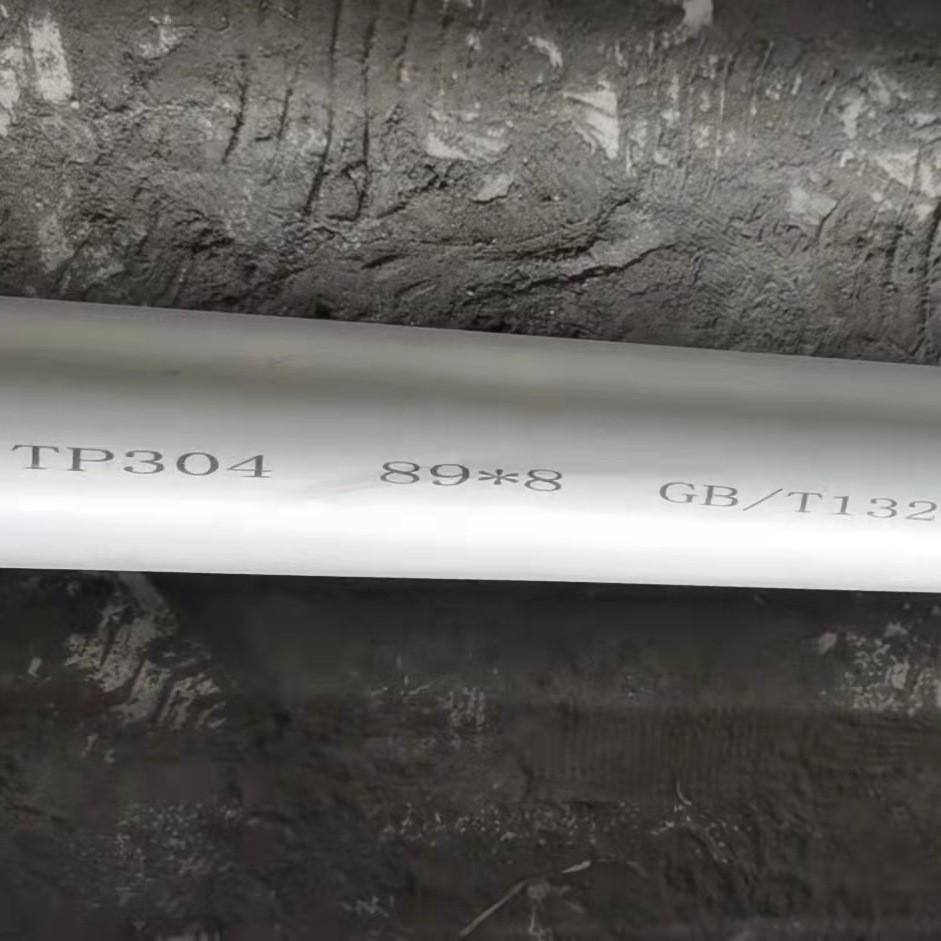

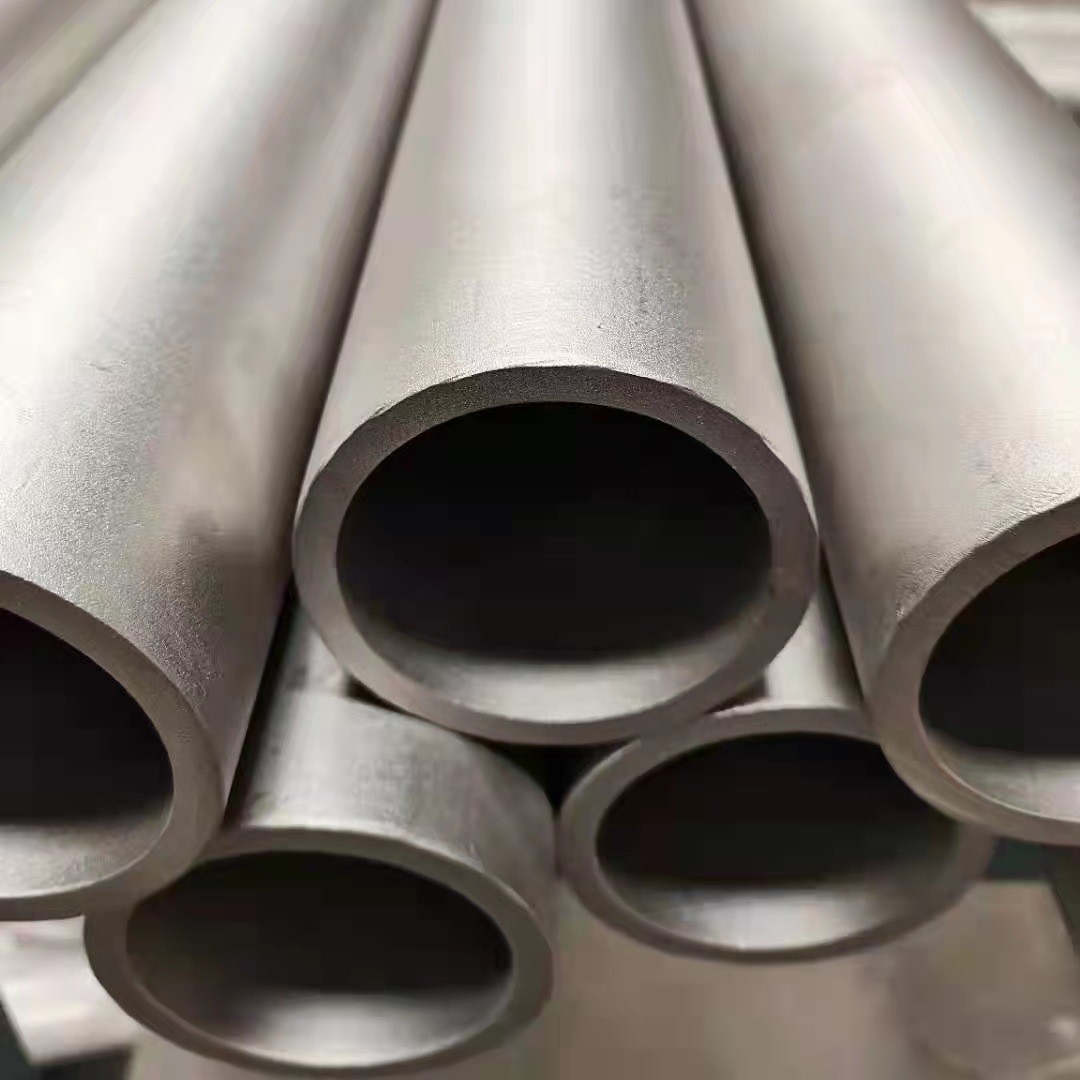

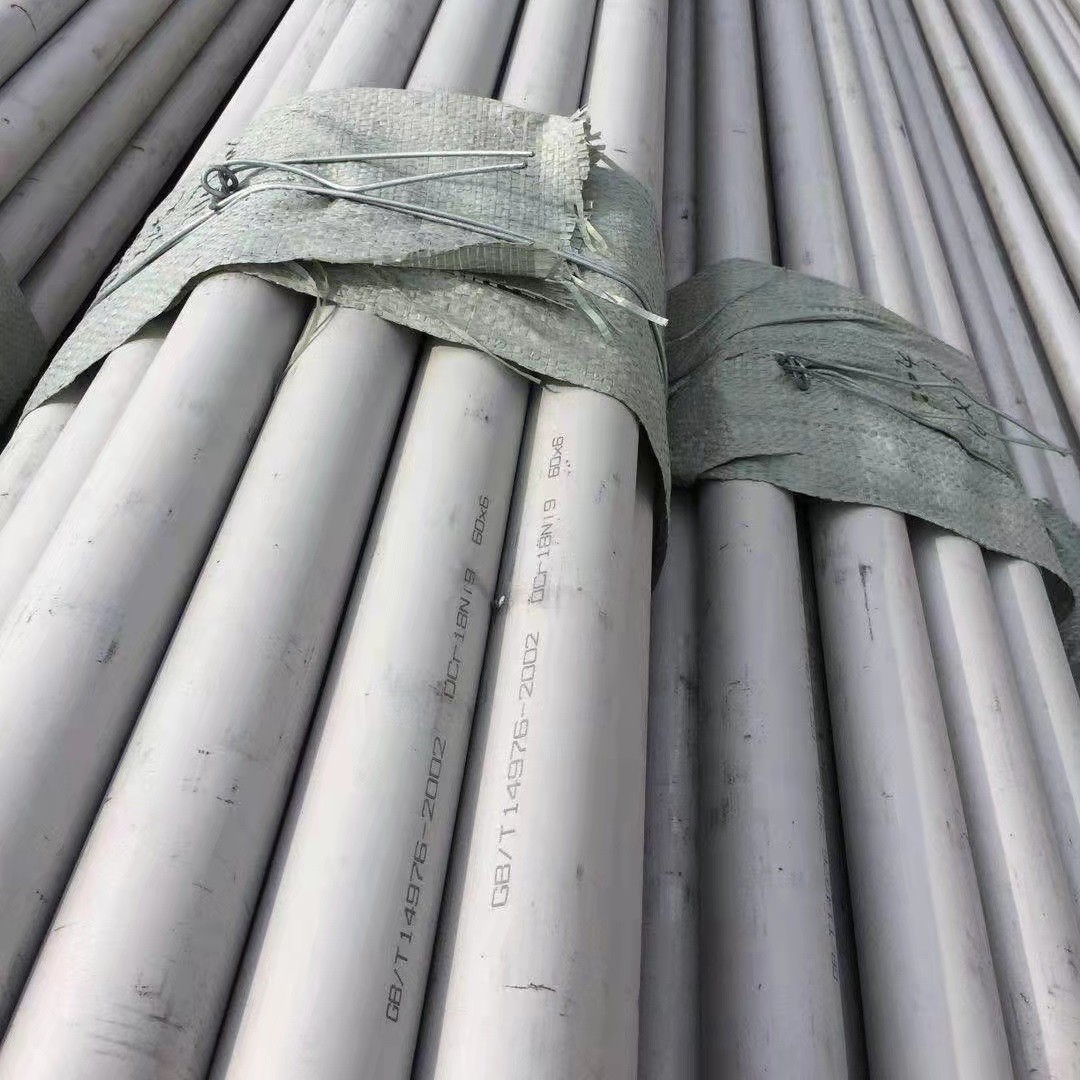

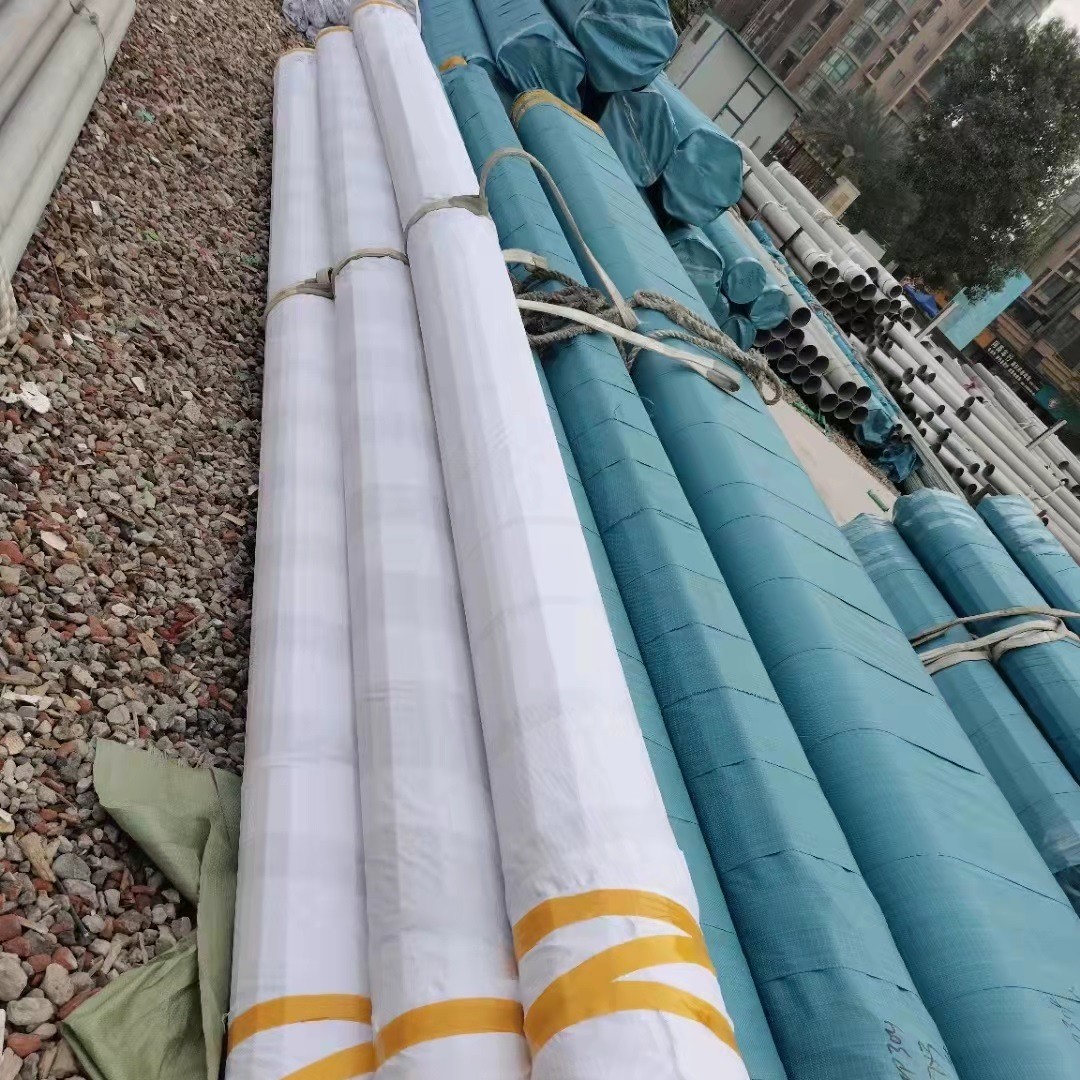

TP316L 316 Stainless Steel PipeTP316L 316 Stainless Steel PipeTP316L 316 Stainless Steel PipeTP316L 316 Stainless Steel Pipe
